Main applications：
Pulling casing tube
Factory details：
Features：
1，Diameter 500mm to 2500mm
2，Drive power: Hydraulic power pack.

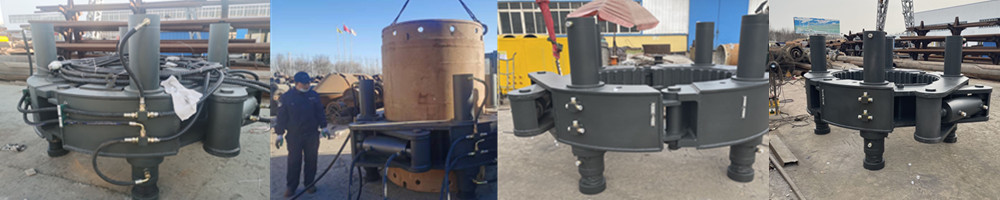

Product details：

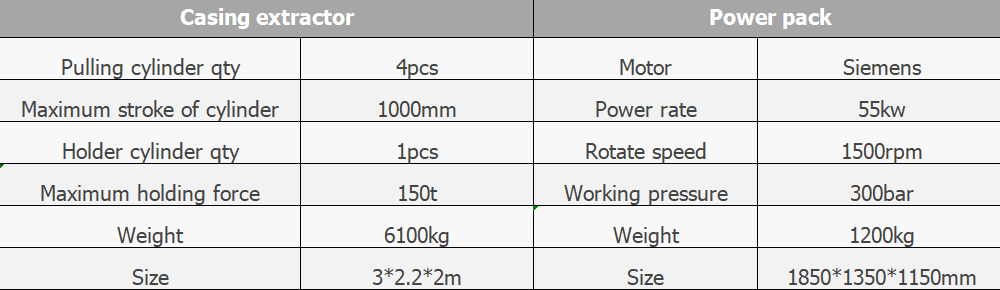

Parameters：

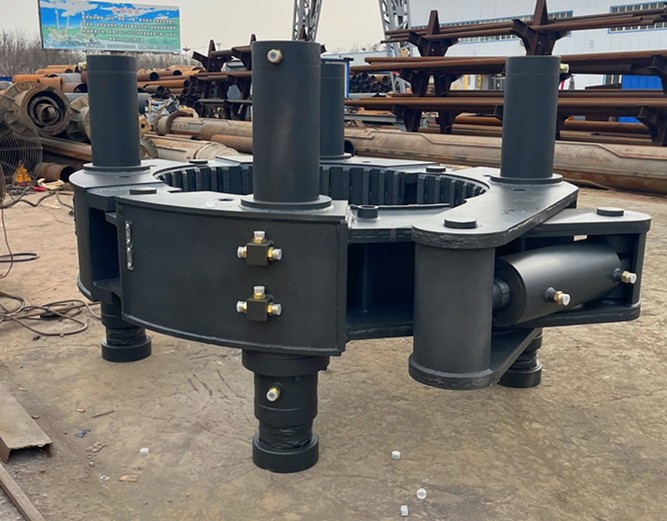

Casing Extractor
Power Pack
Pulling Cylinder Qty
4Pcs
Motor
Siemens
Maximum Stroke Cylinder
1000mm
Power Rate
55KW
Holder Cylinder Qty
1pcs
Rotate Speed
1500rpm
Maximum Holding Force
150T
Working Pressure
300
Weight
6100Kg
Weight
1200Kg
Size
3*2.2*2m
Size
1850*1350*1150mm
Other sizes can be customized

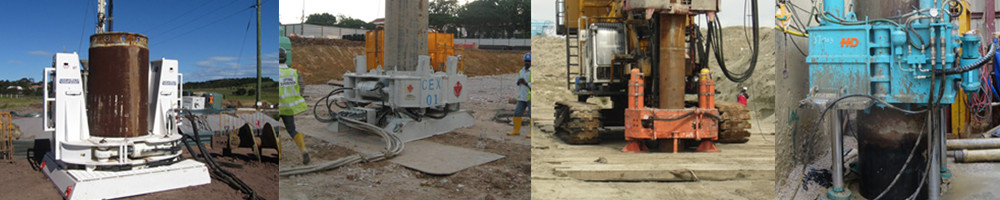

Cases：

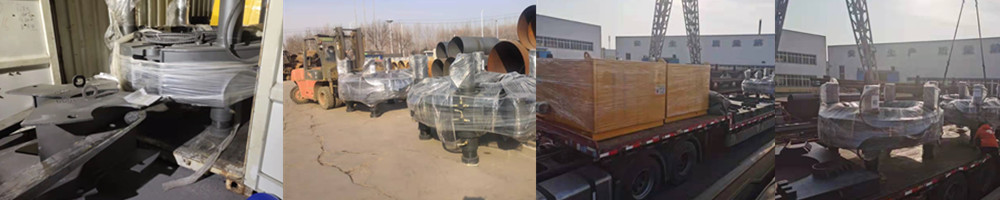

Packing and delivery：
