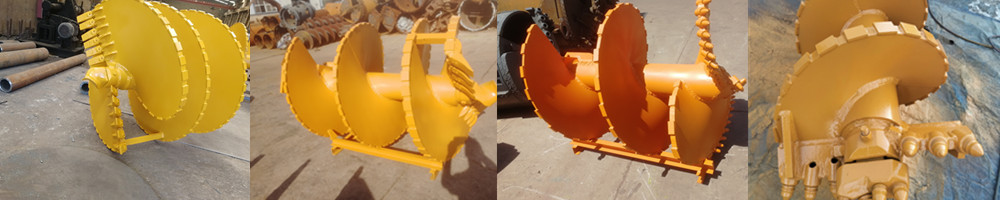

Type：
1，Rock conical auger.
2，Rock flat auger.
3，Soil flat auger.
Application：
1，Soft to stiff cohesive soils.
2，Loose to medium dense non-cohesive soils.
3，Recommended for uncased borepiles or for larger diameters.
Features：
1，Kelly box 130mm/150mm/200mm/250mm customized.
2，Replaceable fishtail polit and flat teeth.
3，Wear protection: hard facing or wear strips

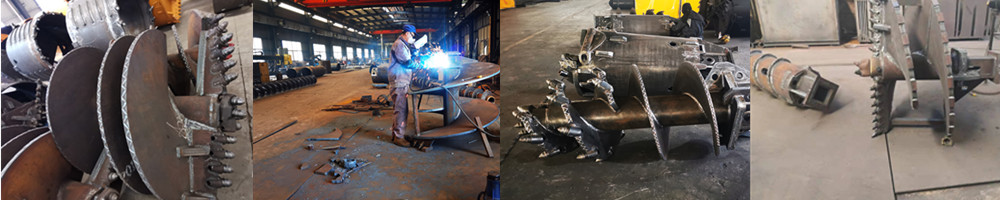

Production Process：

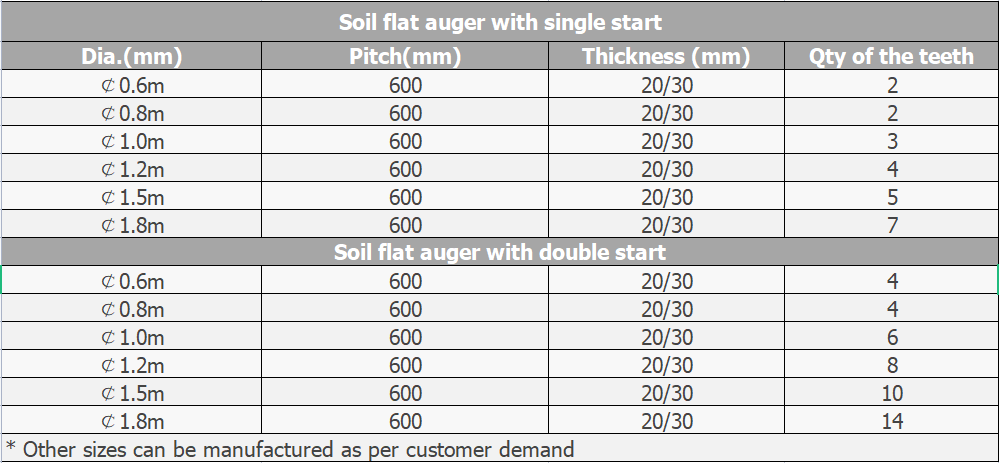

Parameters：
Soil Flat Auger(single cut)
Diameter(mm)
Pitch(mm)
Thickness(mm)
Teeth Qty
600
600
20+30
2
800
600
20+30
3
1000
600
20+30
4
1200
600
20+30
5
1500
600
20+30
7
1800
600
30
8
Other sizes can be customized
Soil Flat Auger(double cut)
Diameter(mm)
Pitch(mm)
Thickness(mm)
Teeth Qty
600
600
20+30
4
700
600
20+30
4
800
600
20+30
4
900
600
20+30
5
1000
600
20+30
6
1100
600
20+30
6
1200
600
20+30
6
1300
600
20+30
7
1400
600
20+30
8
1500
600
20+30
10
1600
600
20+30
12
1700
600
20+30
13
1800
600
20+30
14
Other sizes can be customized

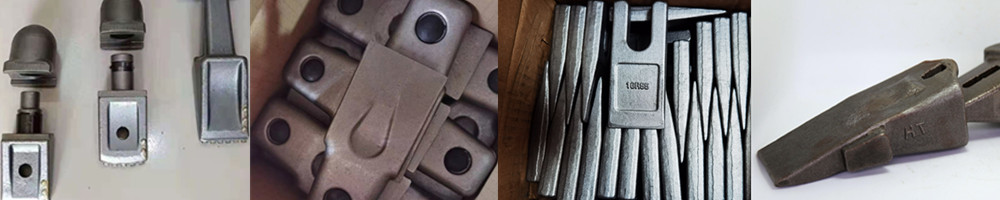

Spare Parts:

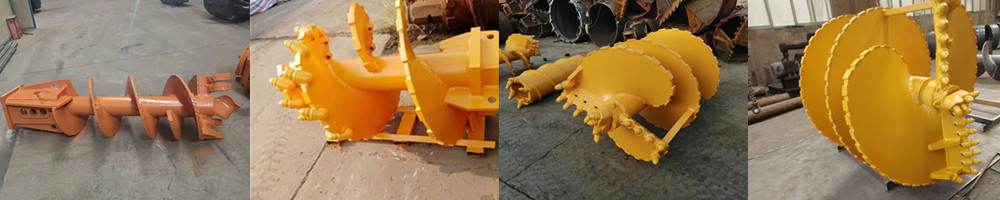

Details:

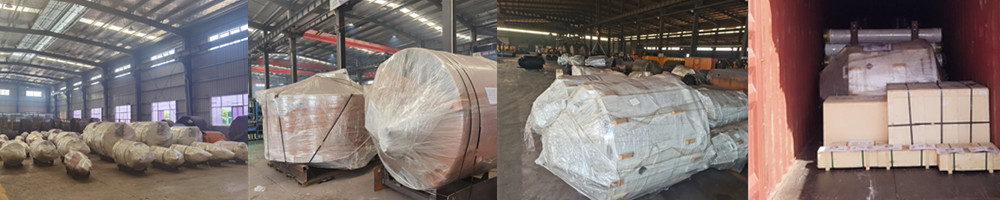

Packing and delivery：
