Main applications：
1，Stiff to hard cohesive soils.
2，Loose to medium dense non-cohesive soils.
3，Double cut drilling bucket recommended in uncased borepiles or for larger diameters.
Features：
1，Kelly box 130mm/150mm/200mm/250mm customized.
2，Bucket teeth: 18t/25t/BFZ72/BFZ80 etc.
3，Ventilation pipe.
4，Wear protection: hard facing or wear strips.
5，Replaceable fishtail polit.

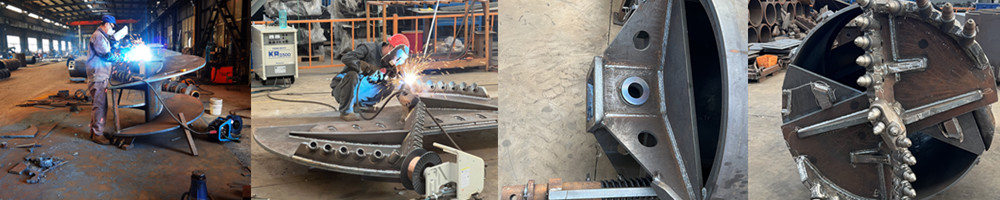

Production Process：
Parameters：

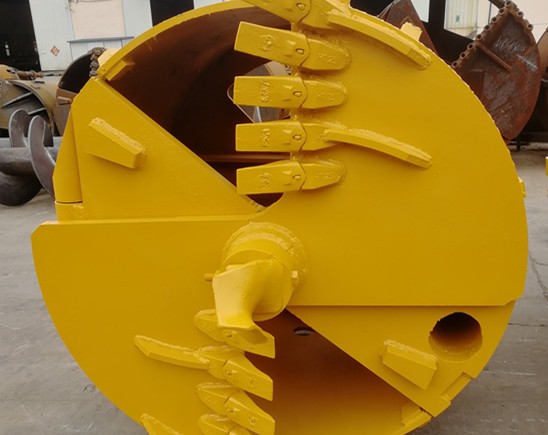

Soil drilling bucket: single cut double bottom, double cut double bottom
| Diameter(mm) | Shell Length(mm) | Thickness(mm) | Teeth Qty |
| 600 | 1200 | 16/20 | 4 |
| 700 | 1200 |
16/20 |
4 |
| 800 | 1200 |
16/20 |
4 |
| 900 | 1200 |
16/20 |
5 |
| 1000 | 1200 |
16/20 |
5 |
| 1100 | 1200 |
16/20 |
6 |
| 1200 | 1200 |
16/20 |
6 |
| 1300 | 1200 |
16/20 |
6 |
| 1400 | 1200 |
16/20 |
7 |
|
1500 |
1200 |
16/20 |
8 |
|
1600 |
1200 |
16/20 |
9 |
|
1700 |
1000 | 20 | 10 |
|
1800 |
1000 | 20 | 12 |
|
2000 |
800 | 20 | 14 |
| 2200 | 800 | 20 | 16 |
| 2500 | 800 | 20 | 18 |
| Other sizes can be customized | |||

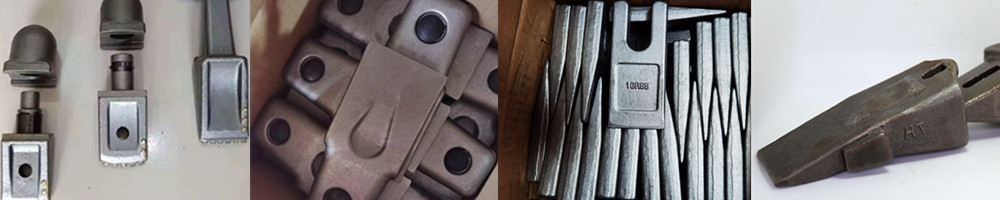

Spare Parts:

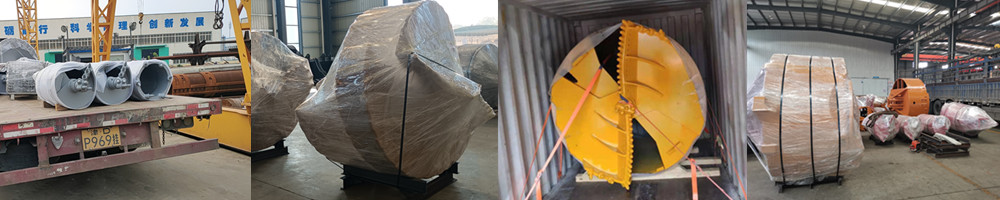

Packing and delivery:
